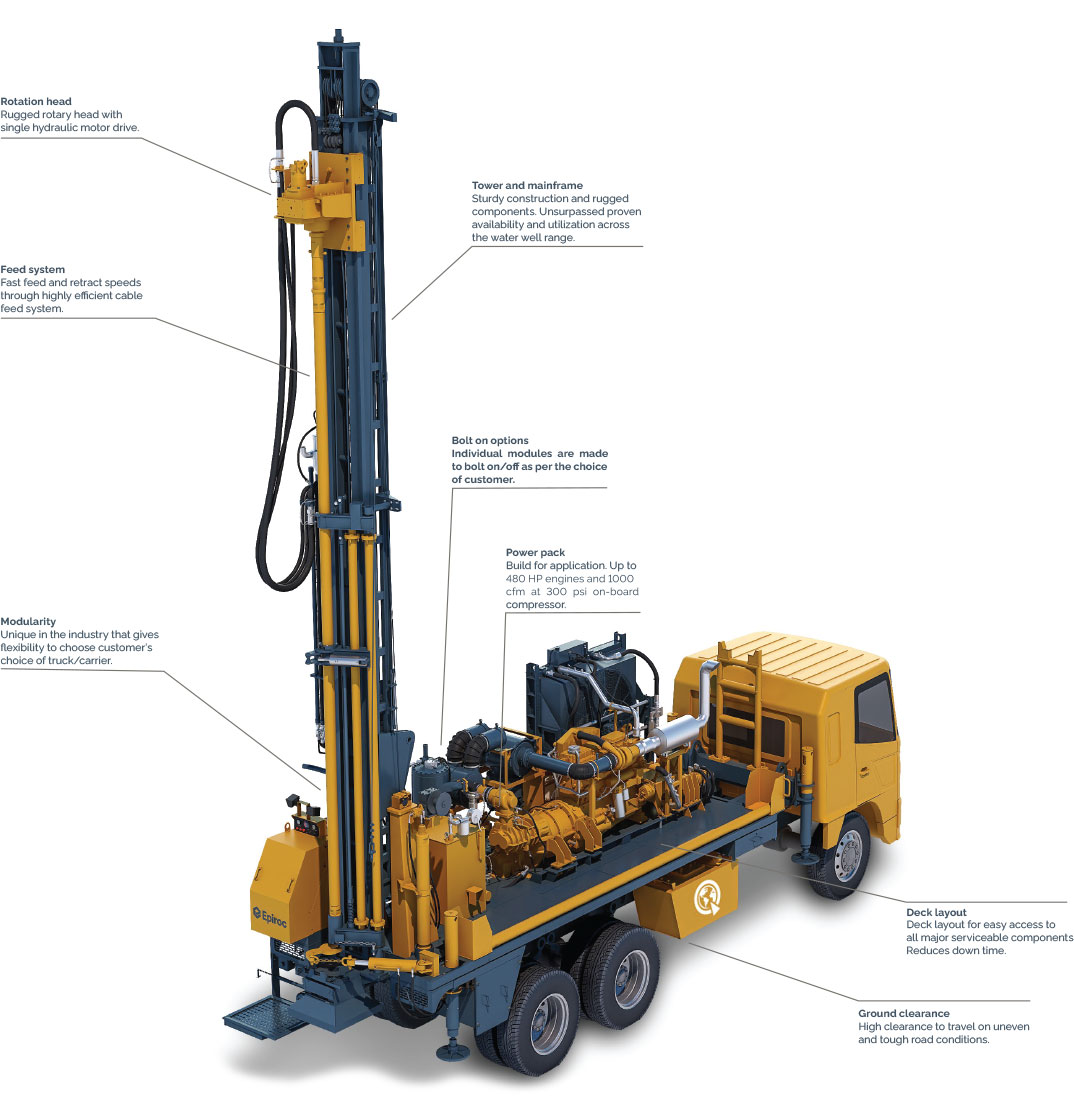

QUINCE M PROEpiroc VA20 / Water well drill rig by
Equipped with a rugged rotary head featuring a single hydraulic motor drive for DTH drilling, the VA20 can reach depths up to 280 m with 165 mm final diameter.
The drill rig offers 10.8 kN of pullback force and 5.09 kN of pulldown force, as well as a table opening of 270 mm. A highly efficient cable feed system can trip out of the hole at speeds around 84 m per minute.
for productivity!

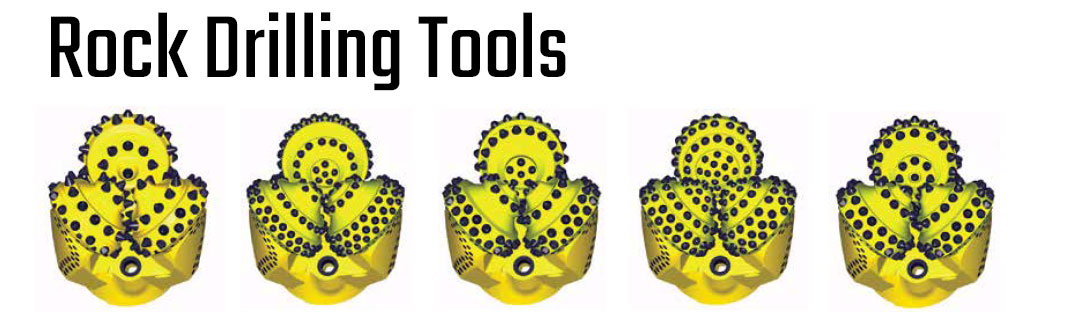

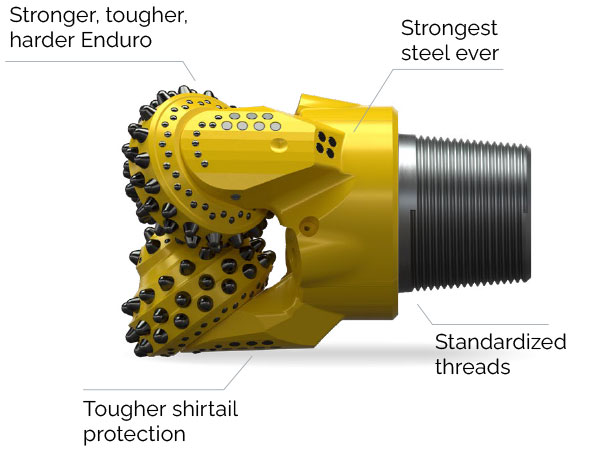

Omega S – Single-sealed bearing bit is available in 20 units from 7⅞ inches (200 mm) to 12¼ inches (311 mm). For every bit size, there are at least three models available – each with a specific cutting structure optimized for different rock strengths.
Common to all units is their single-sealed design, protecting the bearings from wear.

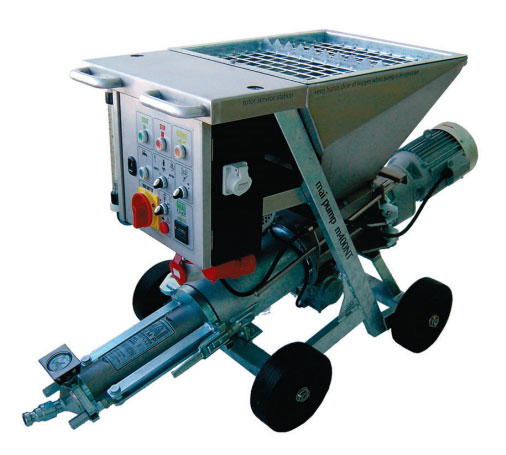

Grout Pump
The MAI PUMP m400 NT is used successfully around the world in tunnel construction, civil engineering, mining and shoring of building excavations, slopes and hill sides.
The proven mixing and pumping technology is especially suitable for: Injection work, Re-injection grouting, Drill hole fi lling, Back fi lling and Anchor mortar

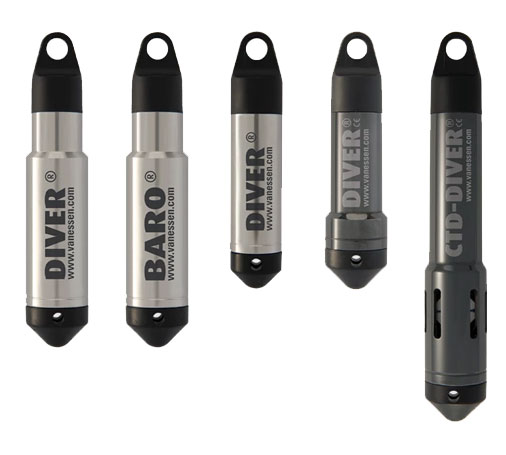

Water Level & Conductivity Loggers
The Van Essen CTD-Diver works wherever there is a need to monitor groundwater levels and saltwater intrusion, injected wastewater, or contamination from chemical discharges and landfill sites. The CTD-Diver is equipped with a four-electrode conductivity sensor that measures electrical conductivity from 0 to 120 mS/cm. There are two options for measuring conductivity: true or specific conductivity at 25 degrees C. Additionally, pressure and temperature are measured and recorded.
